Fanatec CSL Pedals Load Cell Kit – Load Cell Brake Upgrade CSL_P_LCK| Bitkart | Bitkart

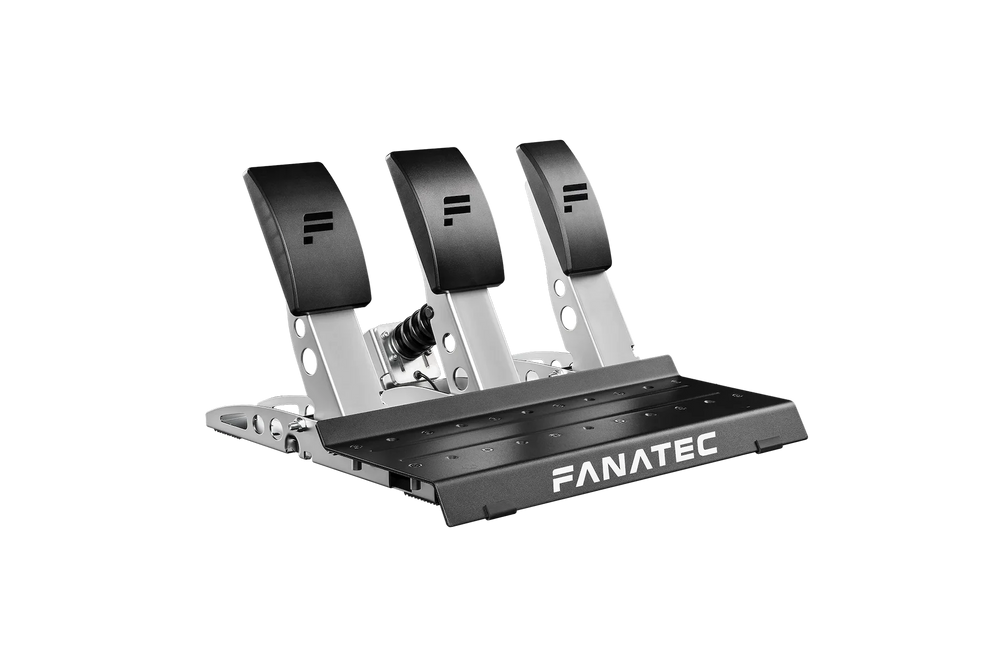

Fanatec CSL Pedals Load Cell Kit
Fanatec CSL Pedals Load Cell Kit View 1
Fanatec CSL Pedals Load Cell Kit View 2
Fanatec CSL Pedals Load Cell Kit View 3
Fanatec CSL Pedals Load Cell Kit View 4

Fanatec CSL Pedals Load Cell Kit

Overview

  • The Fanatec CSL Pedals Load Cell Kit upgrades the standard CSL Pedals with a pressure-based brake system designed to provide a more realistic and consistent braking experience.
  • Load Cell Braking: Measures braking pressure rather than pedal travel, allowing braking input to be controlled through applied force.
  • 12-Bit Precision: Custom-designed load cell sensor provides 12-bit precision with approximately 10 kg minimum sensitivity.
  • 65 Shore Elastomer: Heavy-duty elastomer stack provides strong resistance under compression for a more realistic brake feel.
  • Adjustable Brake Force: Brake sensitivity can be adjusted through the Fanatec Tuning Menu or Fanatec Control Panel on PC.
  • Three-Pedal Upgrade: The kit completely replaces the standard CSL brake pedal, allowing the original brake pedal to be used as a clutch pedal.
  • Upgraded Electronics: Allows manual calibration of minimum and maximum values, with settings stored in internal memory.
  • USB & RJ12: Can connect to a compatible Fanatec wheel base through RJ12 or operate as a standalone USB input device on PC.
  • CSL Pedals Exclusive: Designed specifically for the CSL Pedals and is not compatible with other Fanatec pedal sets
INR 29,999.00
(Inclusive of GST)
Warranty as per parent company policy,
supported by Bitkart
PAN India Shipping

Fanatec CSL Pedals Load Cell Kit (CSL_P_LCK)

The Fanatec CSL Pedals Load Cell Kit is a dedicated brake upgrade for the CSL Pedals, replacing the standard brake pedal with a 12-bit load cell brake system that measures pressure rather than pedal travel. It uses a custom-designed load cell sensor with an adjustable sensitivity of approximately 10 kg minimum, a heavy-duty 65 Shore elastomer stack and upgraded electronics. The original CSL brake pedal can then be repurposed as a clutch pedal, converting the CSL Pedals into a three-pedal setup.

Sku Number
CSL_P_LCK
Model
Fanatec CSL Pedals Load Cell Kit (CSL_P_LCK)
Upgrade Type
Load Cell Brake Upgrade for Fanatec CSL Pedals
Load Cell Sensor
Custom-Designed 12-Bit Load Cell Sensor with Approximately 10kg Minimum Adjustable Sensitivity
Brake System
Pressure-Based Load Cell Brake with Heavy-Duty 65 Shore Elastomer Stack
Construction
Heavy Steel Construction Excluding Pedal Face, with Pearl Chrome Plating on Pedal Base and Arm
Adjustability
Adjustable Braking Force Through Fanatec Tuning Menu or Fanatec Control Panel on PC; Manual Min and Max Calibration Supported
Connectivity
USB or RJ12 Connection; USB Connection Allows the CSL Pedals to Operate as a Standalone PC Input Device
Warranty
3-Year Manufacturer Warranty

Pressure-Based Load Cell Braking

The load cell measures braking pressure rather than pedal travel, providing a more realistic brake feel and allowing consistent braking inputs to be developed through muscle memory.

Realistic Resistance & Adjustable Sensitivity

A heavy-duty 65 Shore elastomer stack provides strong resistance under compression, while the custom-designed 12-bit load cell offers approximately 10kg minimum sensitivity that can be adjusted through the Fanatec Tuning Menu or Control Panel.

Complete CSL Pedals Upgrade

The kit replaces the standard CSL brake pedal and allows that original pedal to be used as a clutch, converting the CSL Pedals into a three-pedal setup. Upgraded electronics support USB or RJ12 connectivity and manual calibration of all three pedal axes.
